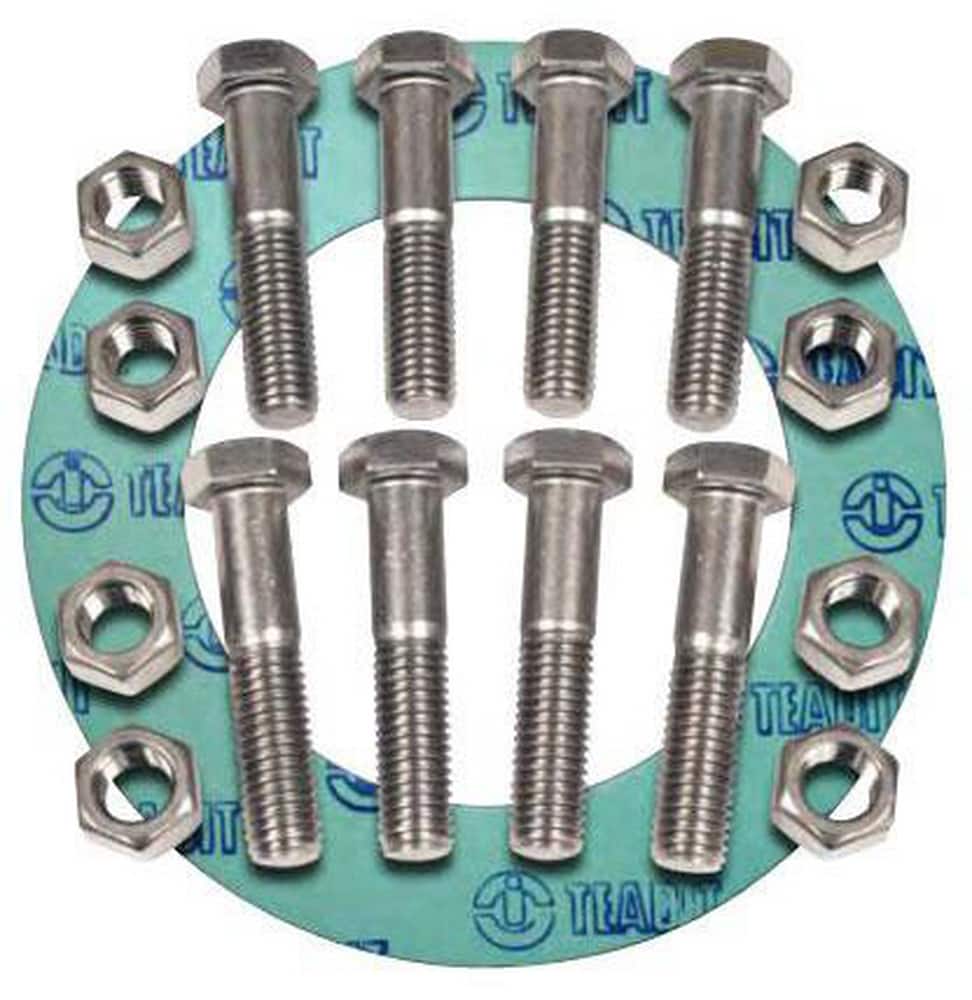

Figure NBG-NA-Z
1 in. Non-Asbestos Gasket with Carbon Steel Hardware, Ring Style 1/8 in. Flange Kit

Part #FNWNBGZ1NAR8G | Item #4717038

• 1 ZN 150# Non Asbestos 1/8 Ring NBG Set
• 150# & 300# Gaskets conform to ASME B16.21
• Bolts conform to ASTM A307A Grade A
• Nuts conform to SAE J996 Grade 2
• Full Face & Ring Style
• 1/16 in. & 1/8 in. Thickness
• Lengths for Joining Two Flanges*
• Non-Asbestos Gasket (Aramid & Other Synthetic Fibers Bonded with Nitrile Rubber)
• Carbon Steel Hardware
• Hardware Finish: Zinc Plated
• Sizes: 1/2 in. to 14 in.
