Figure LBB

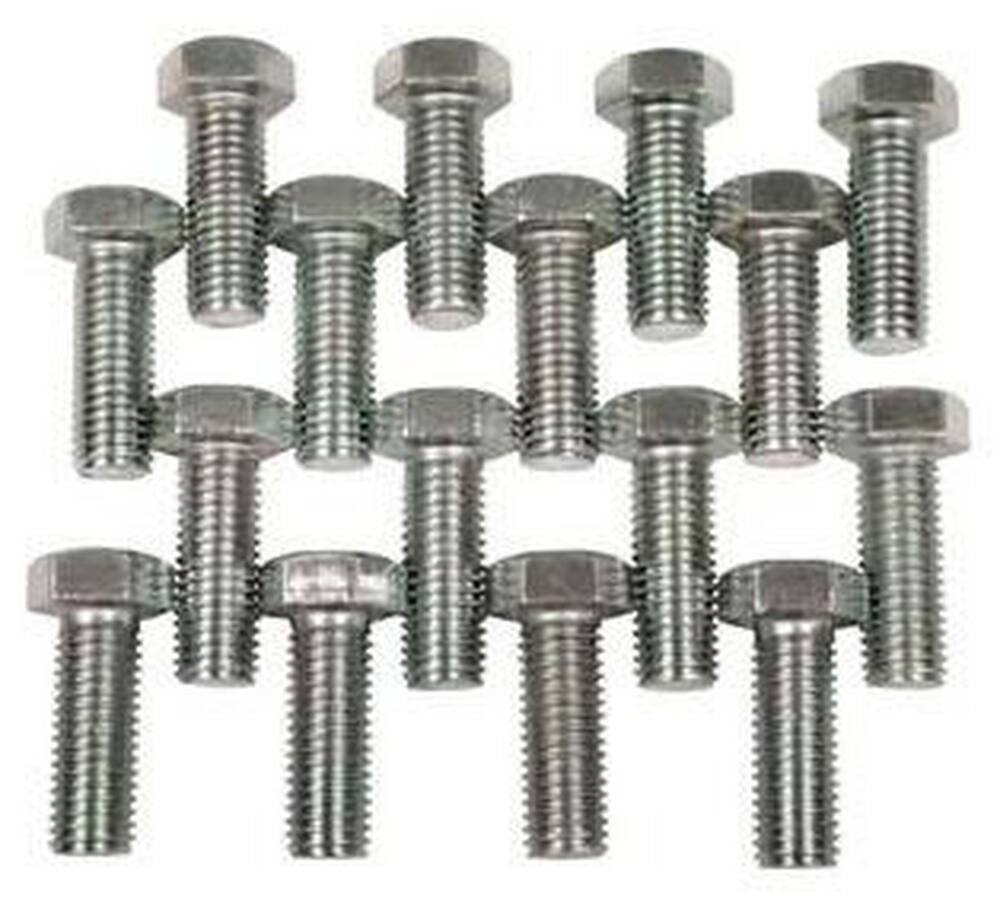

6 in. Double Side Flange Lugged Butterfly Valve Bolt Pack

Part #FNWLBBZ1U | Item #1718117
  • 6 ZN 150# Double SIDE LUG Butterfly Valve Bolt Set
  • 150# Flanges Only
  • Bolt Quantities for Two Flanges
  • Carbon steel material
  • Zinc plated
  • Sizes 2" to 12"
  • Material: ASTM A307 Grade A
  • Dimensions: ASME B18.2.1
  • Tensile: 60 KSI Minimum
  • Elongation: 18% Minimum

All Sizes

2 in
Part #FNWLBBZ1K | Item #1718112
2-1/2 in
Part #FNWLBBZ1L | Item #1718113
3 in
Part #FNWLBBZ1M | Item #1718114
4 in
Part #FNWLBBZ1P | Item #1718115
5 in
Part #FNWLBBZ1S | Item #1718116
6 in
Part #FNWLBBZ1U | Item #1718117
8 in
Part #FNWLBBZ1X | Item #1718118
10 in
Part #FNWLBBZ110 | Item #1718152
12 in
Part #FNWLBBZ112 | Item #1718110
14 in
Part #FNWLBBZ114 | Item #4717096
16 in
Part #FNWLBBZ116 | Item #4717099
18 in
Part #FNWLBBZ118 | Item #4717100
20 in
Part #FNWLBBZ120 | Item #4717102
24 in
Part #FNWLBBZ124 | Item #4717106
