Figure 751

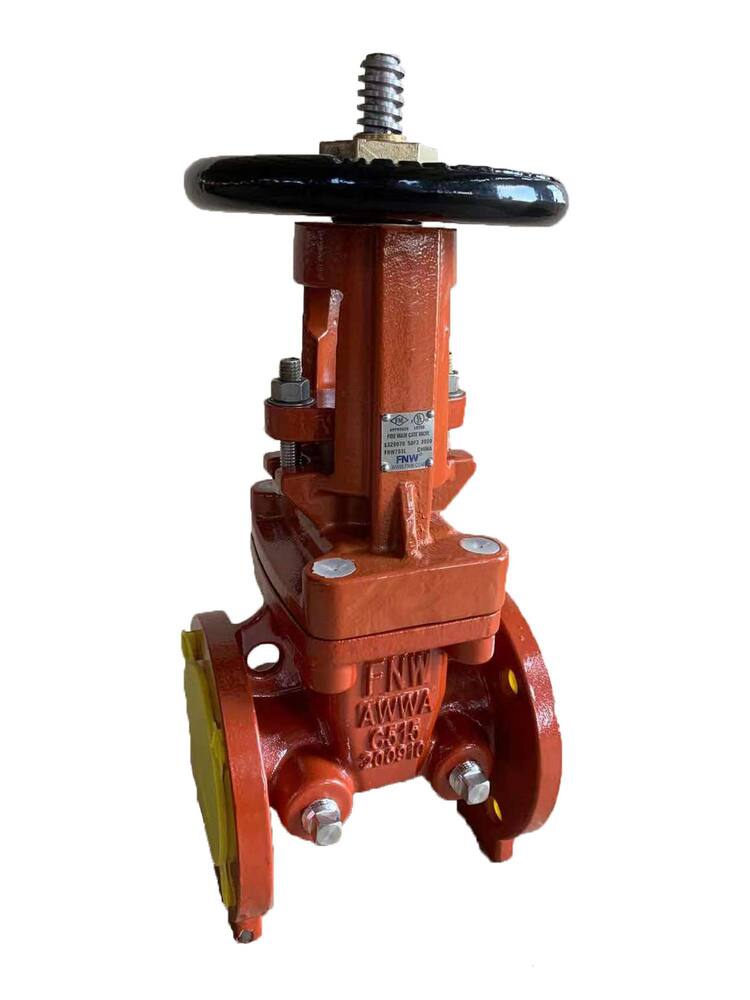

3 in. Ductile Iron Flanged Handwheel UL FM Gate Valve Outside Stem & Yoke

Part #FNW751M | Item #7781675

• 3 DI 150# FLG UL FM OS&Y GATE VLV
• 302 psi non-shock cold working pressure
• 32F -175F temperature range
• Ductile iron body and bonnet
• 306 stainless steel stem
• EPDM encapsulated ductile iron disc
• Outside yoke & stem
• Pre-tapped and plugged for bypass
• Pre-grooved stem for tamper switch
