Figure 73

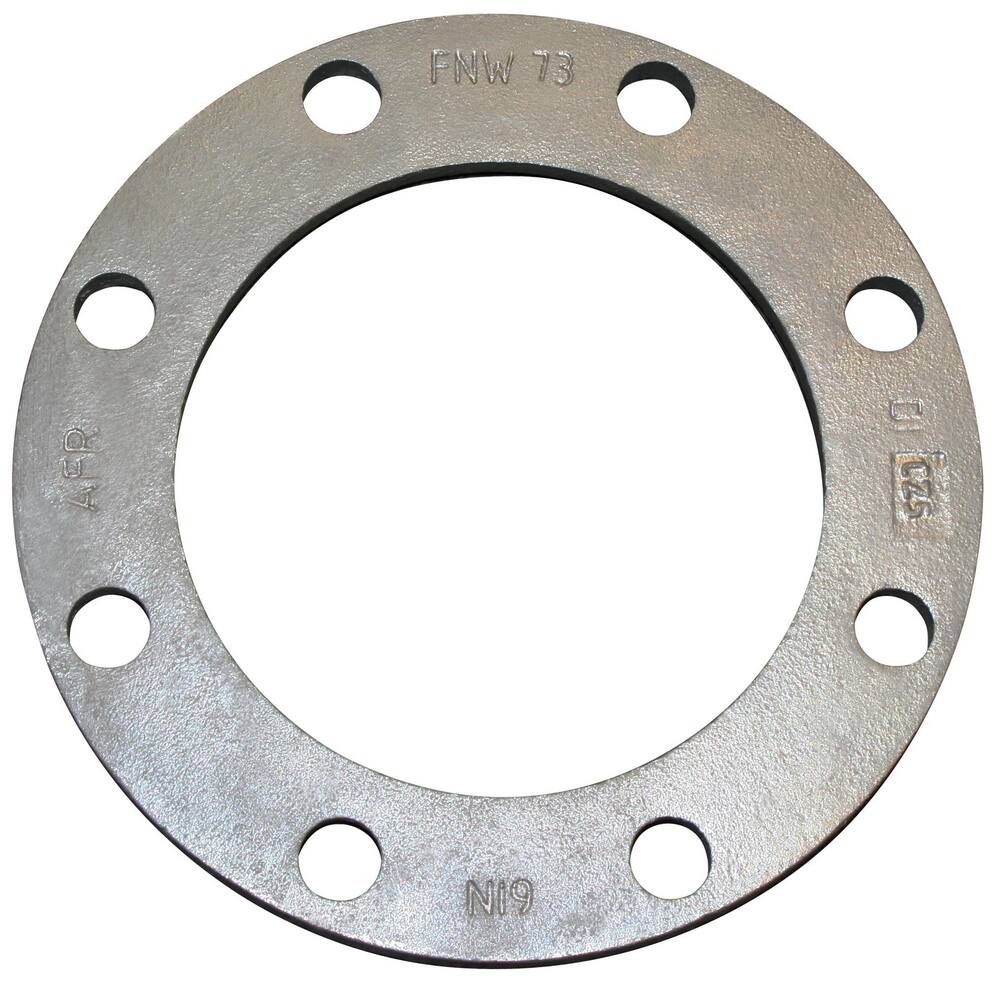

6 in. IPS Galvanized Ductile Iron Back-Up Angled Face Ring Flange

Part #FNW73GU | Item #4823978
  • 6 IPS Galvanized Ductile Iron BU FLG AFR
  • 150# flange drilling
  • Cast ductile iron
  • Ring-side beveled inner diameter
  • Back-side marking visible when installed
  • Backup flange
  • Tensile strength 65 KSI minimum
  • Yield strength 45 KSI minimum
  • Elongation 12% minimum

All Sizes

2 in
Part #FNW73GK | Item #4823972
2-1/2 in
Part #FNW73GL | Item #4823973
3 in
Part #FNW73GM | Item #4823974
4 in
Part #FNW73GP | Item #4823976
6 in
Part #FNW73GU | Item #4823978
8 in
Part #FNW73GX | Item #4823979
10 in
Part #FNW73G10 | Item #4823980
12 in
Part #FNW73G12 | Item #4823981
14 in
Part #FNW73G14 | Item #4823982
16 in
Part #FNW73G16 | Item #4823983
18 in
Part #FNW73G18 | Item #4823985
20 in
Part #FNW73G20 | Item #4823987
24 in
Part #FNW73G24 | Item #4823990
