Figure 310AM

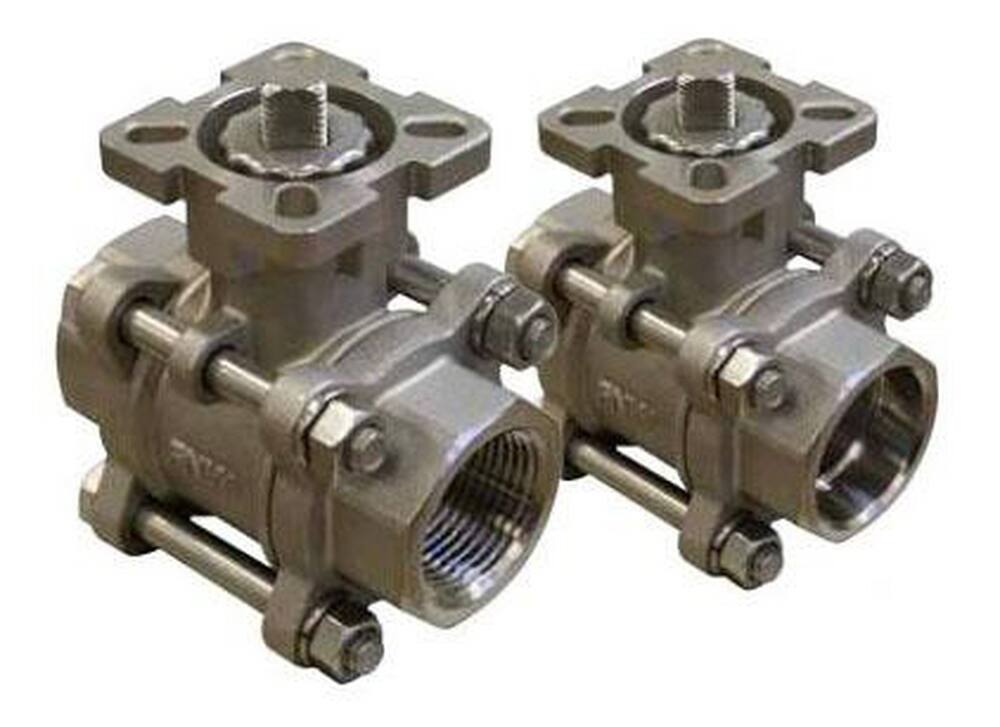

1-1/4 in. Stainless Steel CF8M Full Port Socket Weld Isolation Ball Valve

Part #FNW310AMSWH | Item #4106063
  • 1-1/4 Stainless Steel 1000# Socket Weld 3 Piece Full Port Isolation BV
  • 1-1/4 in. stainless steel ball valve
  • End Connections: Socket Weld
  • Valve Length: 4.33 in.
  • Valve Pressure Class: 1000#
  • Recommended Application: Steam, water
  • Saturated steam 150 psi
  • Live loaded packing
  • Investment cast body
  • Vented ball
  • Vacuum rated to 26.967 in hg

All Sizes

1/4 in
Part #FNW310AMSWB | Item #4106252
3/8 in
Part #FNW310AMSWC | Item #4106255
1/2 in
Part #FNW310AMSWD | Item #4106259
3/4 in
Part #FNW310AMSWF | Item #4106058
1 in
Part #FNW310AMSWG | Item #4106060
1-1/4 in
Part #FNW310AMSWH | Item #4106063
1-1/2 in
Part #FNW310AMSWJ | Item #4106067
2 in
Part #FNW310AMSWK | Item #4106069
2-1/2 in
Part #FNW310AMSWL | Item #4106071
3 in
Part #FNW310AMSWM | Item #4106072
4 in
Part #FNW310AMSWP | Item #4106074

Documents

Specification
Installation
Warranty
310AM-Ball-Valve.rfa
310AMLHK-Ball-Valve.rfa
310AMSW-Ball-Valve.rfa
310AMSWLHK-Ball-Valve.rfa
