Figure NBG-R-Z

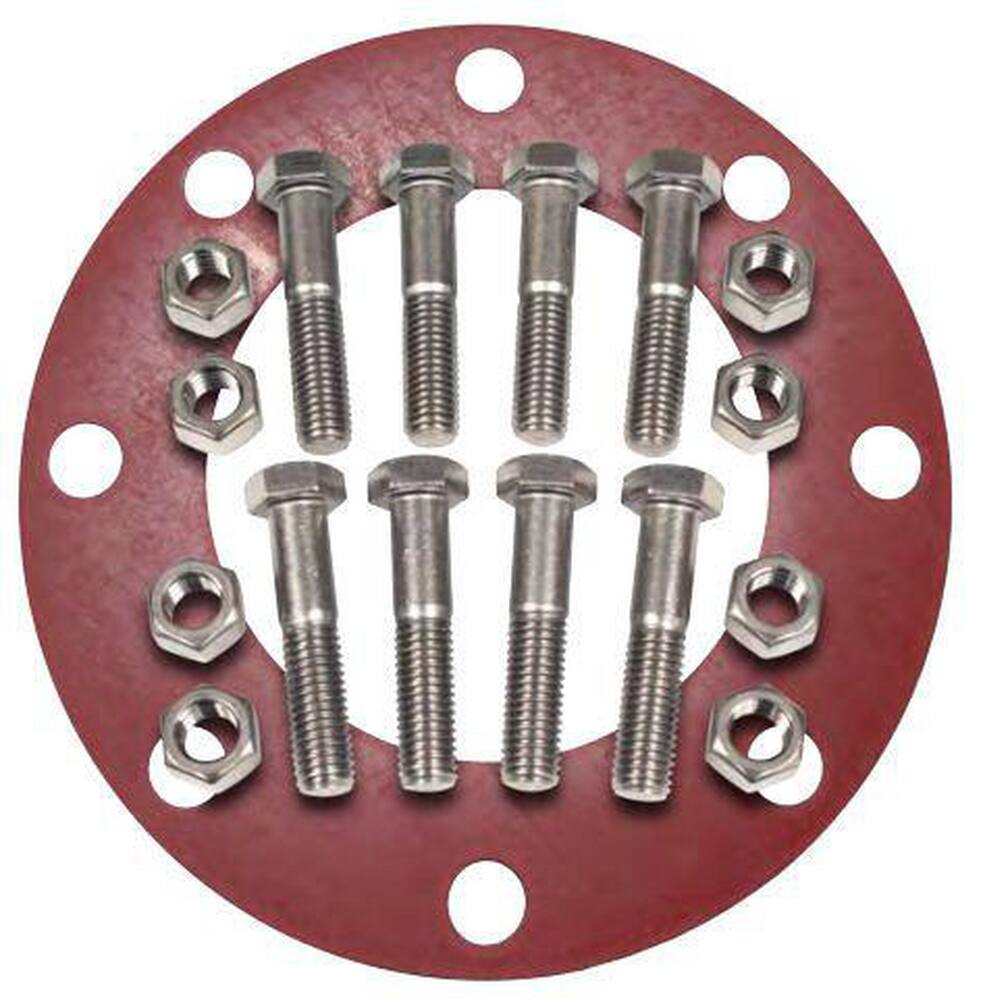

16 in. Red Rubber Gasket with Carbon Steel Hardware, Full Face 1/16 in. Flange Kit

Part #FNWNBGZ1RF616 | Item #1880673

• Non-asbestos gaskets (green):
• Manufactured From Aramid and Other Synthetic Fibers Bonded with Nitrile Rubber (NBR)
• Meets ASME B16.21 for 150# & 300# gaskets; Dimensions: ASME B16.5
• Max Temperature: 750 F (400 C); Max Continuous Temperature: 460 F (240 C)
• Max Pressure: 1595 PSI (110 Bar); Max Continuous Pressure: 725 (50 Bar)
• Red Rubber gaskets (red to reddish orange, smooth):
• Manufactured From Styrene-Butadiene (SBR)
• Meets ASME B16.21 for 150# gaskets; Dimensions: ASME B16.5
• Durometer Hardness: Shore A 5: 75
