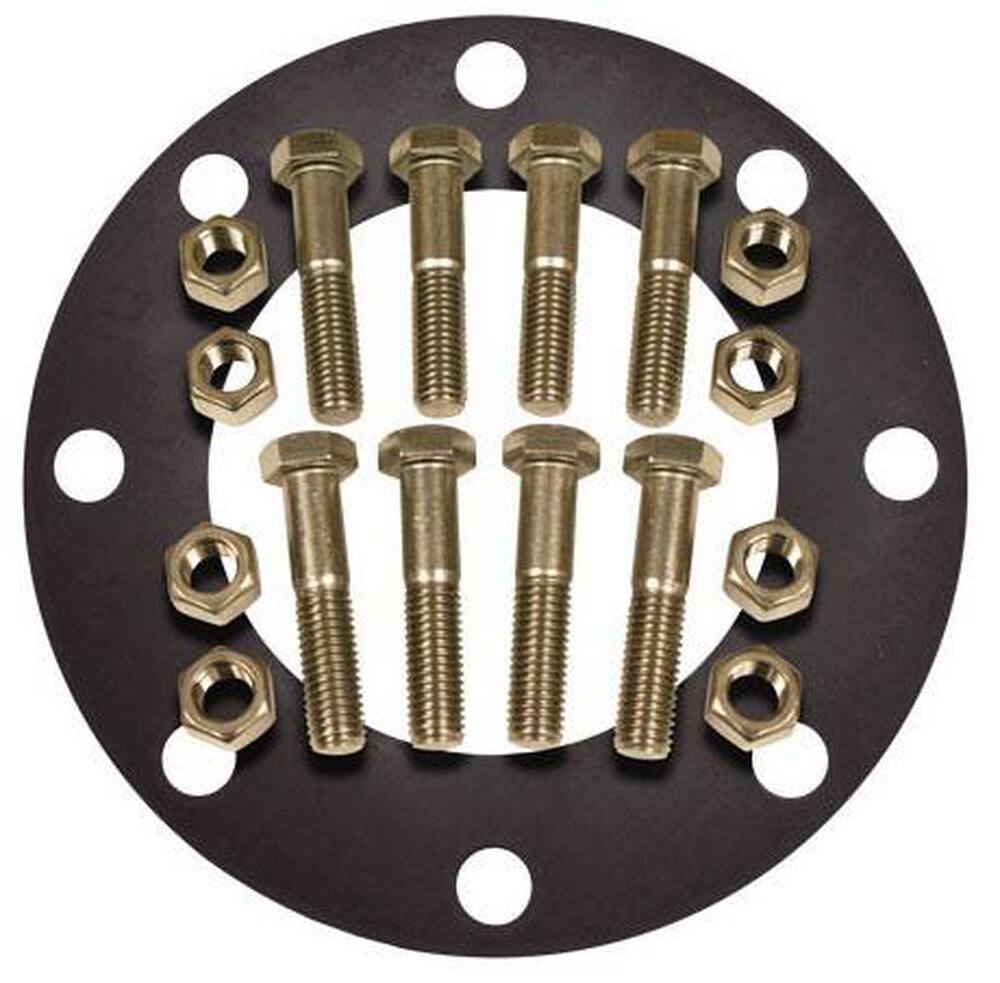

Figure NBG-NE-SS
10 x 1/8 in. Full Face Neoprene and 316 Stainless Steel Kit

Part #FNWNBGS61NEF810 | Item #2500977

• 150# full-face neoprene gasket with bolts and nuts
• Cap screws conform to ANSI/ASME B18.2.1 and ANSI/ASME B1.1
• Nuts conform to ANSI/ASME 18.2.2 and ANSI/ASME B1.1
• Stainless steel nuts and bolts conform to ASTM F593 for grades 304 and 316
• For ANSI 150# Flanges
• Lengths for Joining Two Flanges*
• Neoprene Gasket
• 304 & 316 Stainless Steel Hardware
• Hardware Finish: Material Finish
• Sizes: 3 in. to 16 in.
