Figure 73

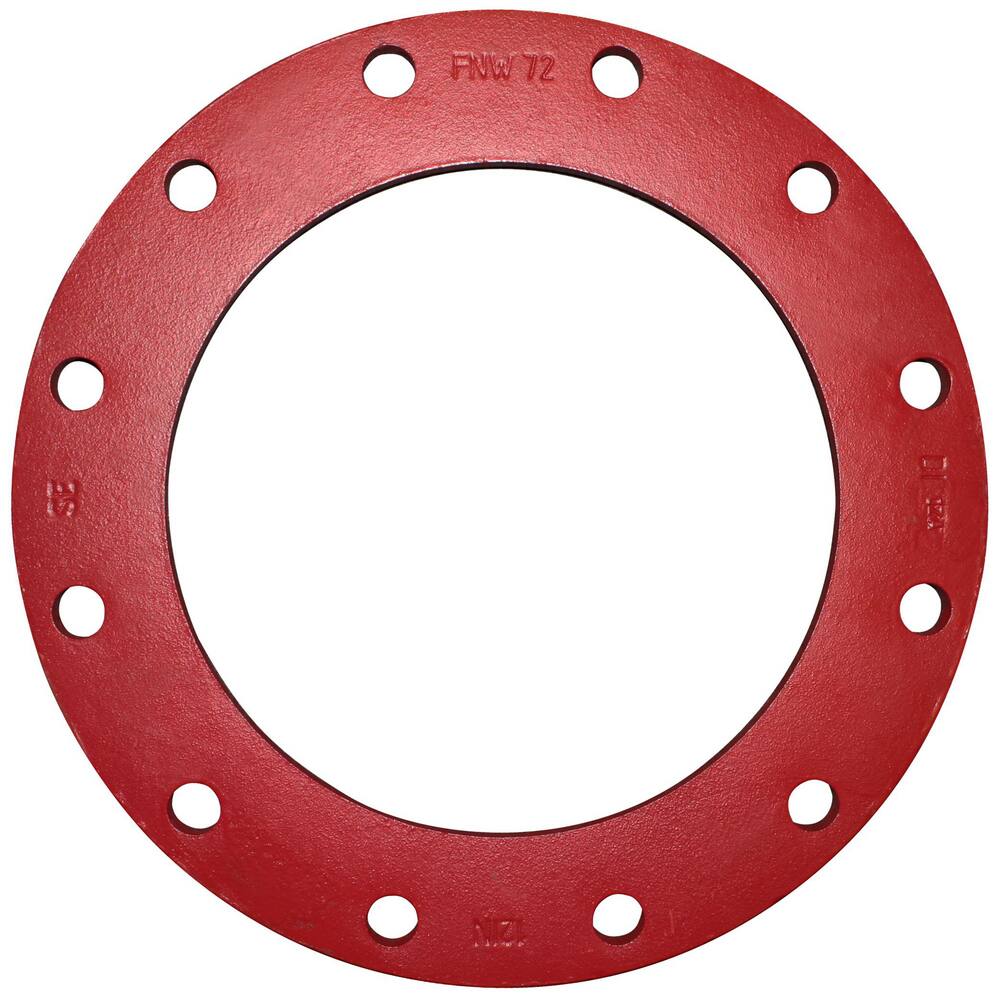

10 in. IPS Ductile Iron Painted Back-Up Angled Face Ring Flange

Part #FNW73P10 | Item #4823984

• 150# flange drilling
• Cast ductile iron
• Ring-side beveled inner diameter
• Back-side marking visible when installed
• Backup flange
• Tensile strength 65 KSI minimum
• Yield strength 45 KSI minimum
• Elongation 12% minimum
• 1 mil minimum Finish Thickness
