Figure 451A

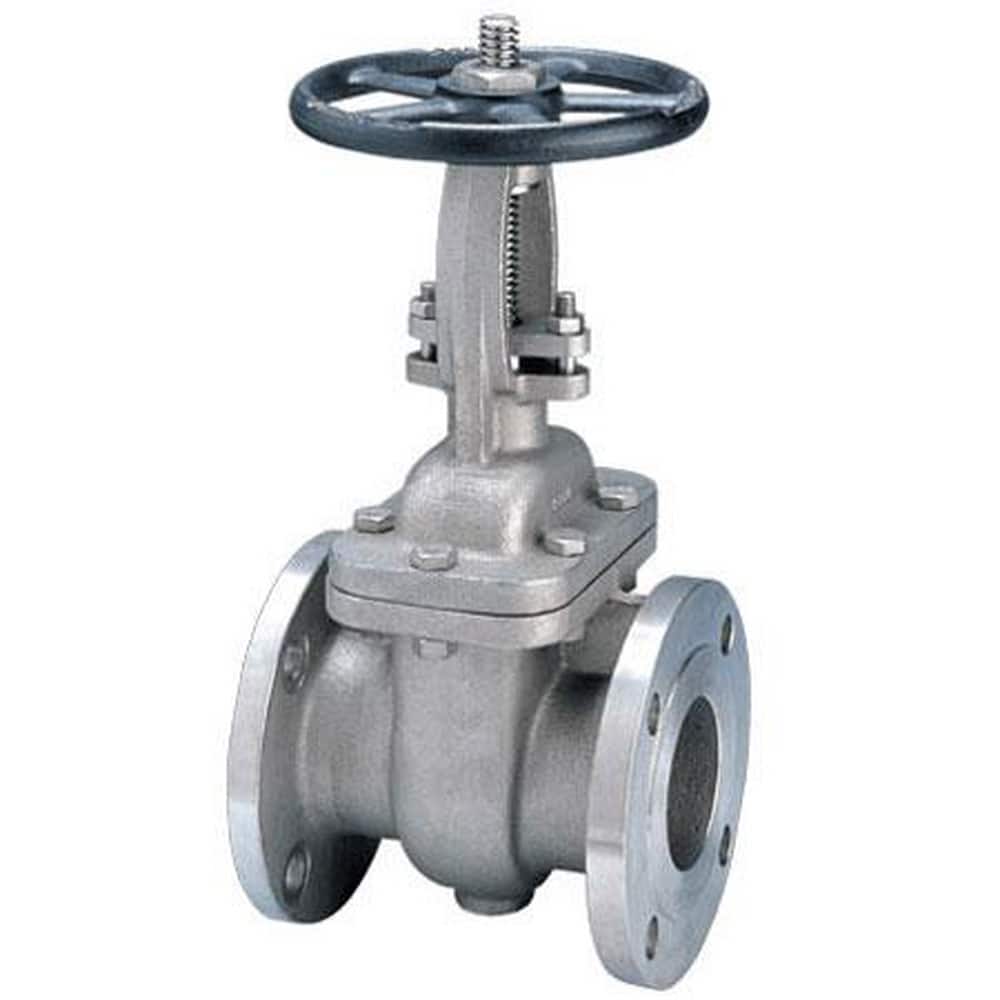

1-1/2 in. Stainless Steel Flanged Handwheel Gate Valve

Part #FNW451AJ | Item #7775901

• CF8M Seat is Integral to Body
• Investment Cast Body up to 8”
• Design per API 603
• Pressure/Temperature Rating per ANSI B16.34
• Flange Dimensions per ANSI B16.5
• Face to Face Dimensions per ANSI B16.10
• Pressure Tested per API 598
