Figure 355A

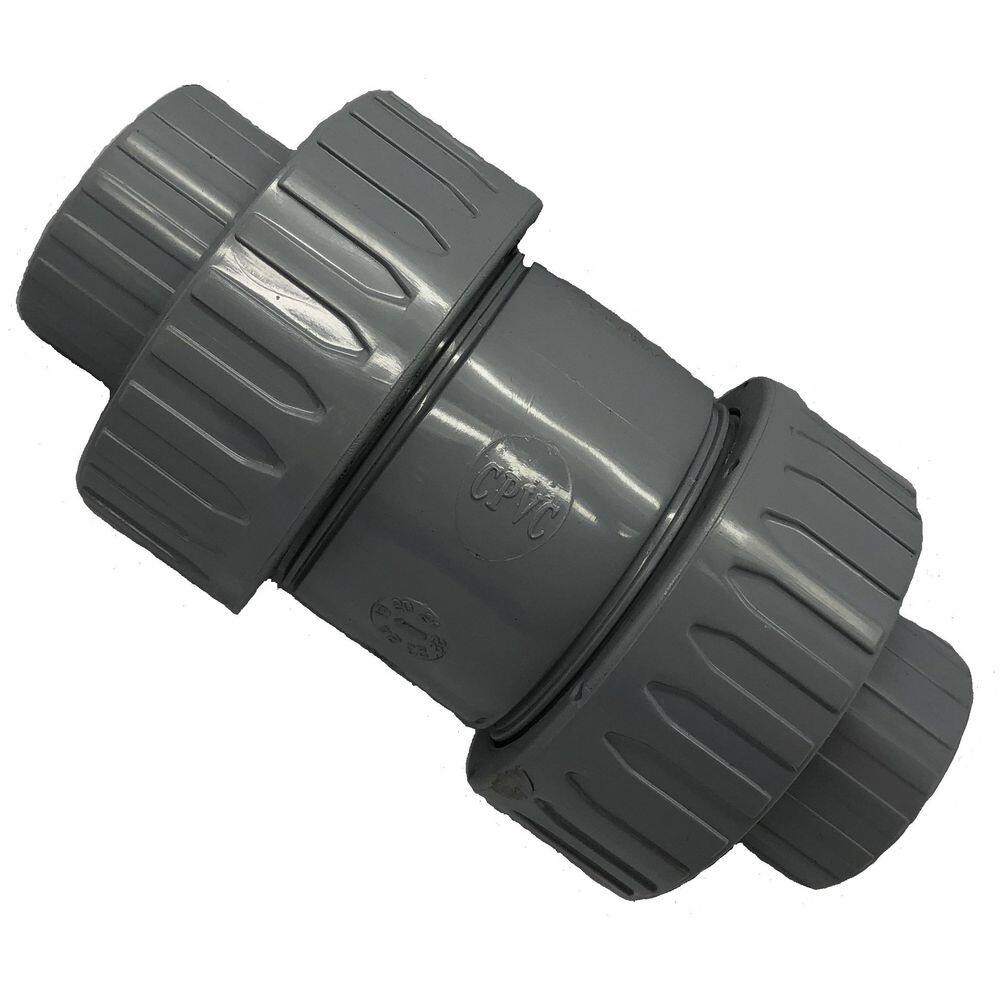

1 in. CPVC NPT x Socket Weld True-Union Ball Check Valve

Part #FNW355AEG | Item #7849615

• 1 in. cpvc ball check valve
• End Connections: Threaded x Socket Weld
• Valve Length: 5.345 in.
• Maximum Temperature: 194 degrees (F)
• Valve Pressure Class: 150#
• Recommended Application: Water
• ANSI B1.20.1
• 5 PSI minimum shutoff
• For vertical and horizontal installation
• With flow direction arrow
