800 Series

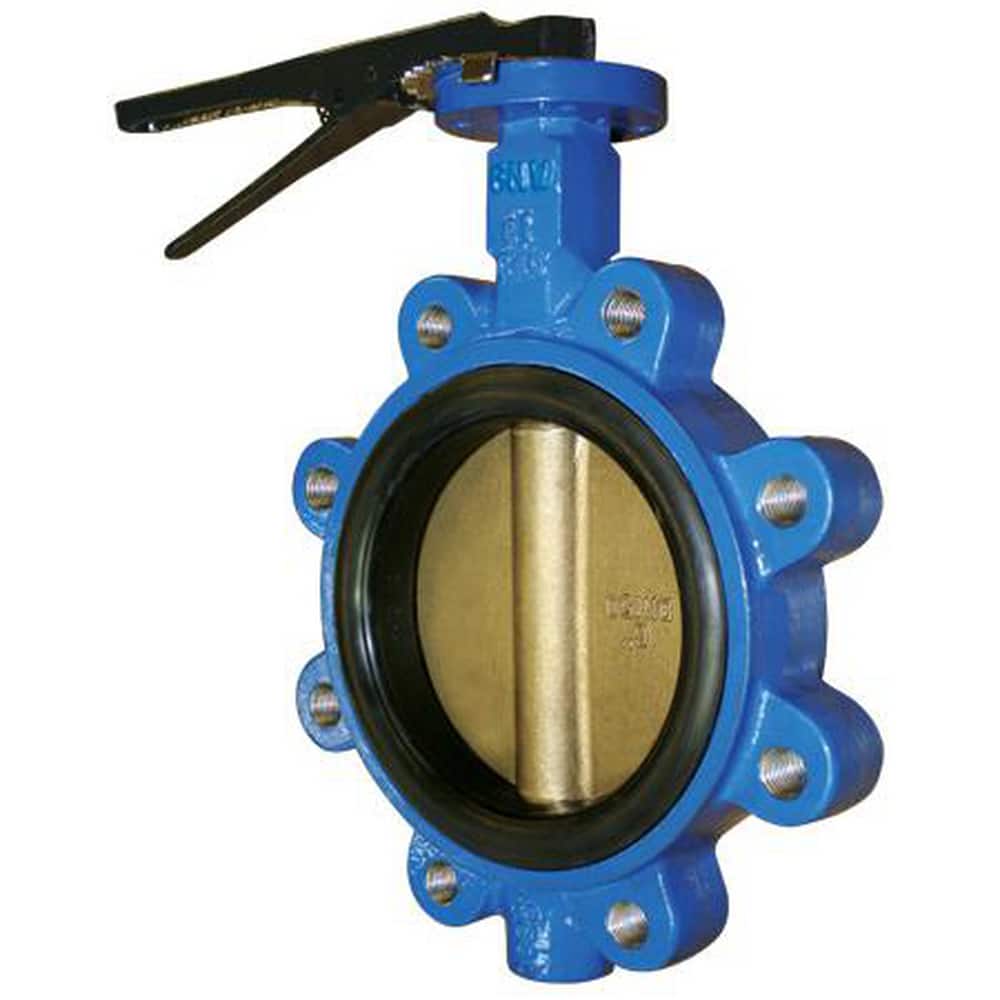

6 in. Ductile Iron Flanged Lug Viton Lever Handle Butterfly Valve

Part #FNW832VU | Item #10563137

• LF 6 DI SS VITON 250# LUG BFV LO

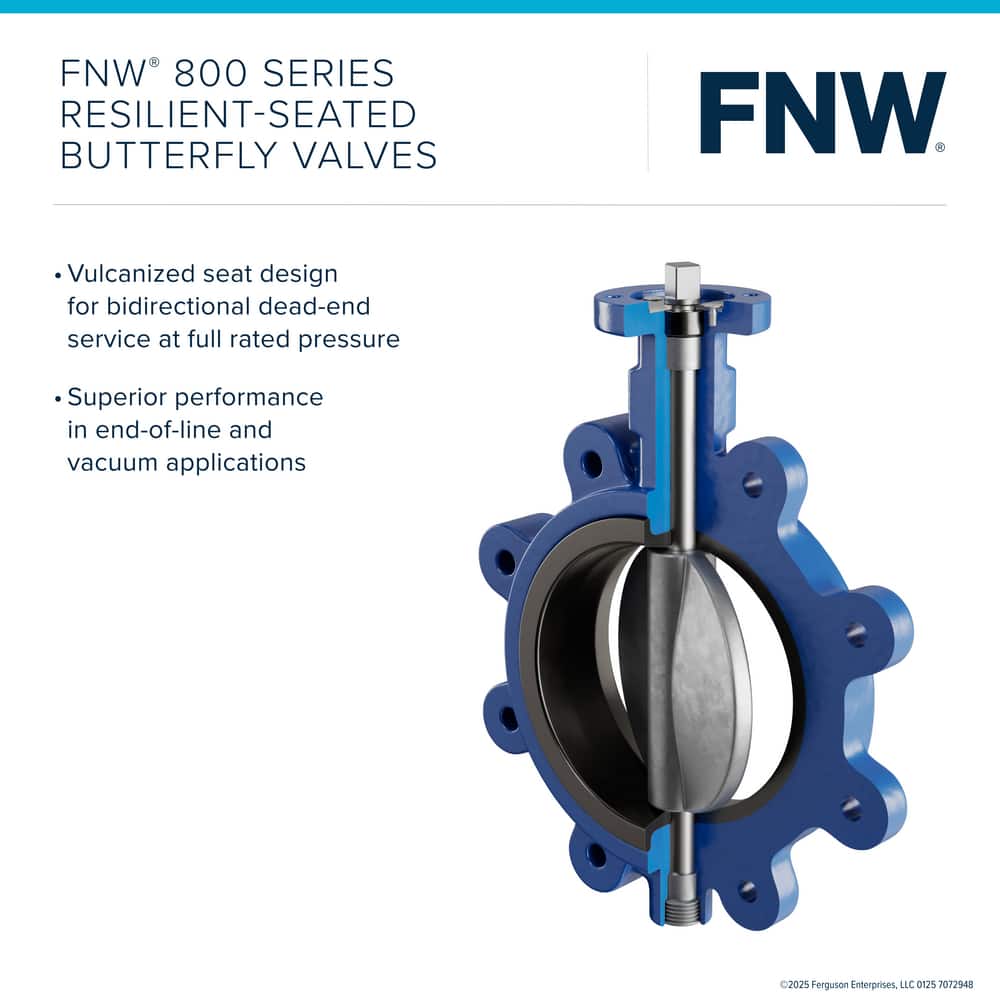

• Rated for Bi-directional dead-end service at full rated pressure
• Designed for 125/150 lbs flanges
• Standard 316ss disc and stem offers superior strength and chemical resistance
• Secured stem retainer plate for blowout-proof protection and also allows operator removal with valve in line
• High strength two-piece stem eliminates taper pins and disc screws from flow path
• Dual PTFE shaft bearings for reduced torque and improved stem alignment
