800 Series

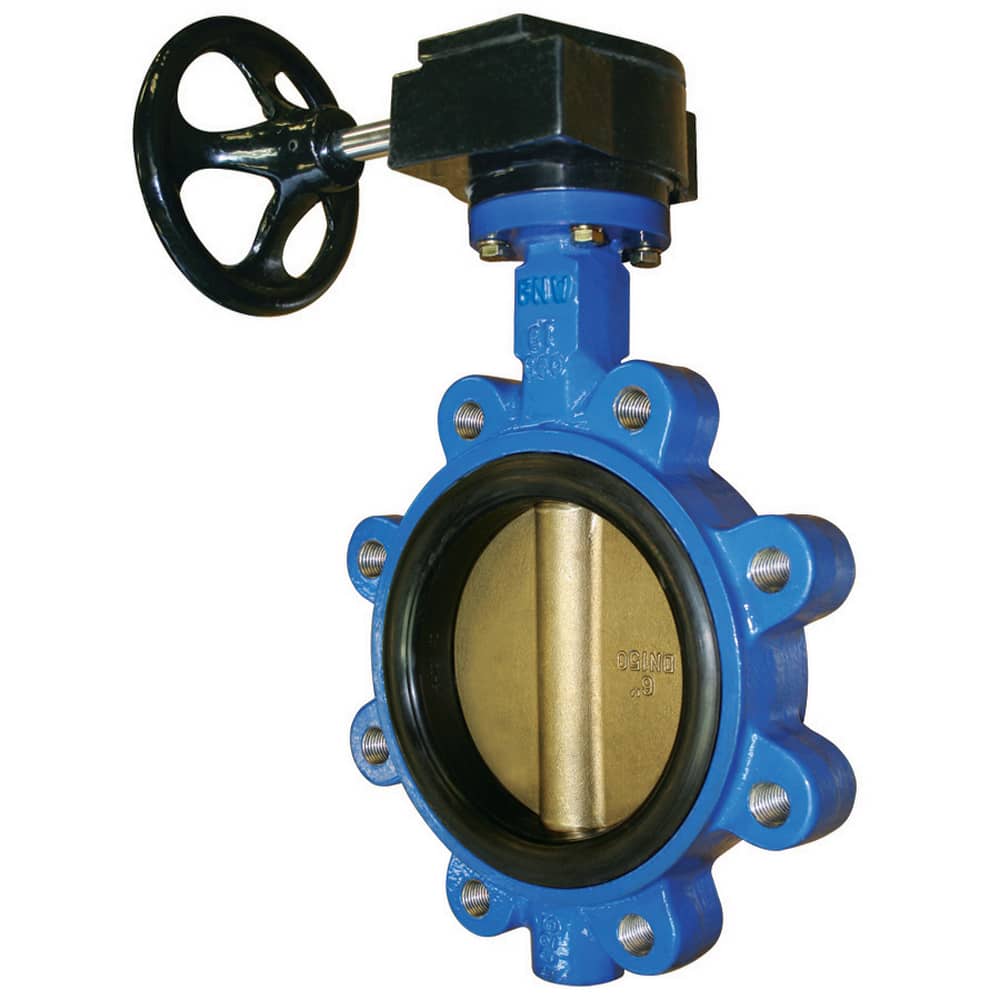

10 in. Ductile Iron Flanged Lug Buna-N Gear Operator Handle Butterfly Valve

Part #FNW812BG10 | Item #10563055

• LF 10 DI BRZ BUNA 200# LUG BFV GO
• Rated for Bi-directional dead-end service at full rated pressure
• Designed for 125/150 lbs flanges
• Aluminum-bronze disc
• Secured stem retainer plate for blowout-proof protection and also allows operator removal with valve in line
• High strength two-piece stem eliminates taper pins and disc screws from flow path
• Dual PTFE shaft bearings for reduced torque and improved stem alignment
