Figure NBG-NA-Z

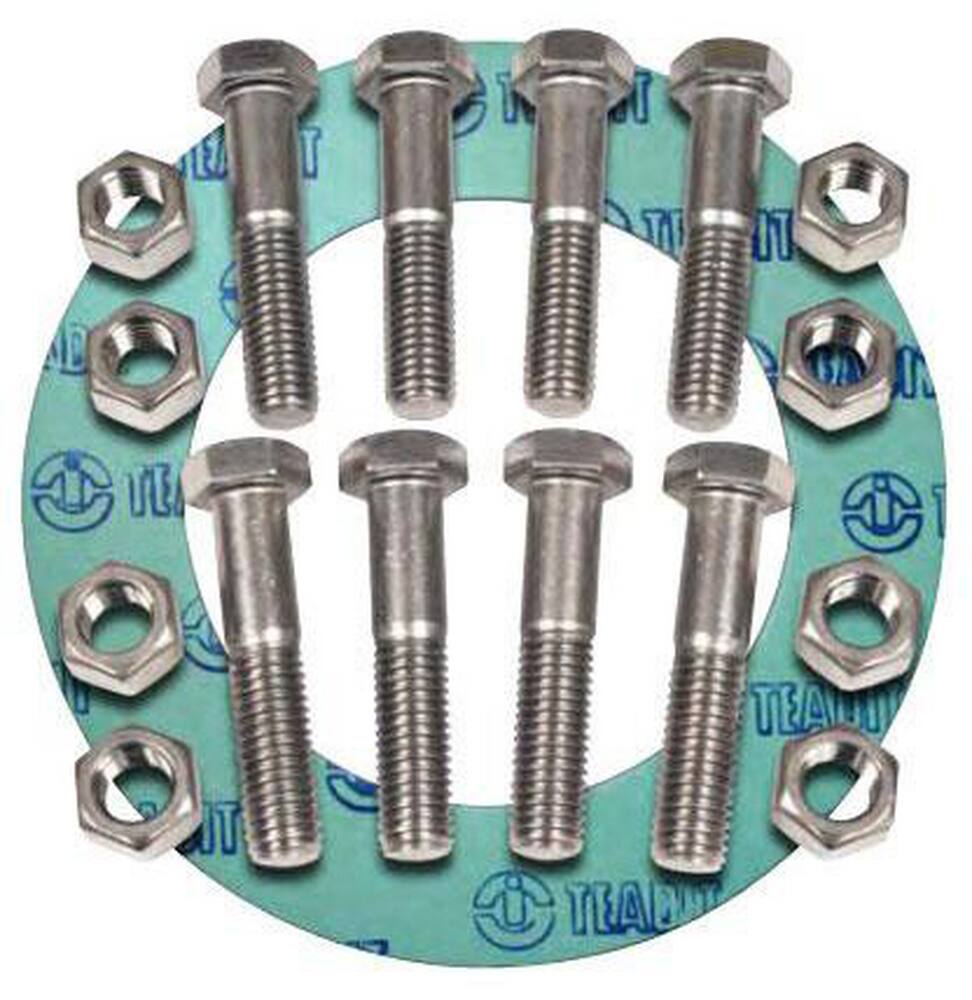

10 in. Non-Asbestos Gasket with Carbon Steel Hardware, Ring Style 1/16 in. Flange Kit

Part #FNWNBGZ1NAR610 | Item #3971825

• 10 150# ZN Non Asbestos 1/16 Ring NBG Set
• Non-asbestos gaskets (green):
• Manufactured From Aramid and Other Synthetic Fibers Bonded with Nitrile Rubber (NBR)
• Meets ASME B16.21 for 150# & 300# gaskets; Dimensions: ASME B16.5
• Max Temperature: 750° F (400° C); Max Continuous Temperature: 460° F (240° C)
• Max Pressure: 1595 PSI (110 Bar); Max Continuous Pressure: 725 (50 Bar)
• Red Rubber gaskets (red to reddish orange, smooth):
• Manufactured From Styrene-Butadiene (SBR)
• Meets ASME B16.21 for 150# gaskets; Dimensions: ASME B16.5
• Durometer Hardness: Shore A ±5: 75
