Figure 345A

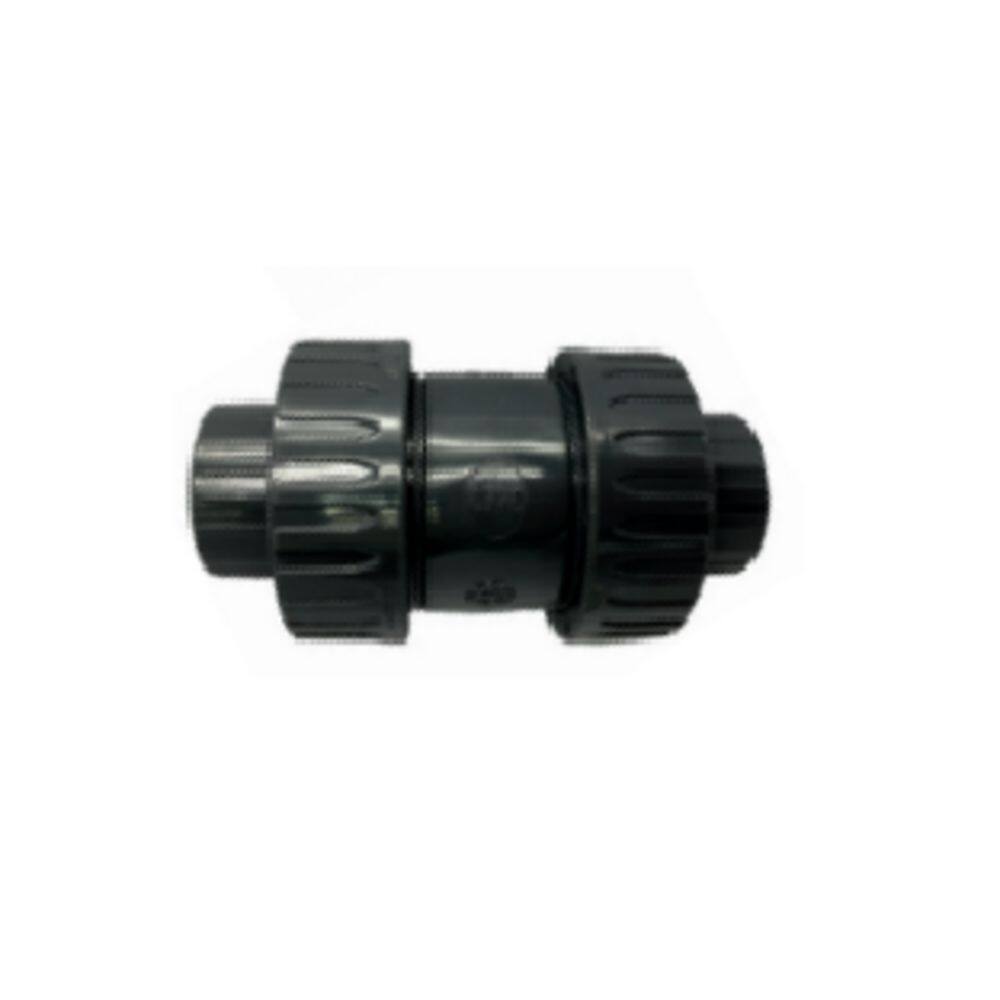

1 in. PVC NPT x Socket Weld True-Union Ball Check Valve

Part #FNW345AEG | Item #7849701

• 1 in. pvc ball check valve
• End Connections: Threaded x SWT
• Valve Length: 5.345 in.
• Maximum Temperature: 122 degrees (F)
• Valve Pressure Class: 150#
• Recommended Application: Gas
• ANSI B1.20.1
• 5 PSI minimum shutoff
• For vertical and horizontal installation
• With flow direction arrow
