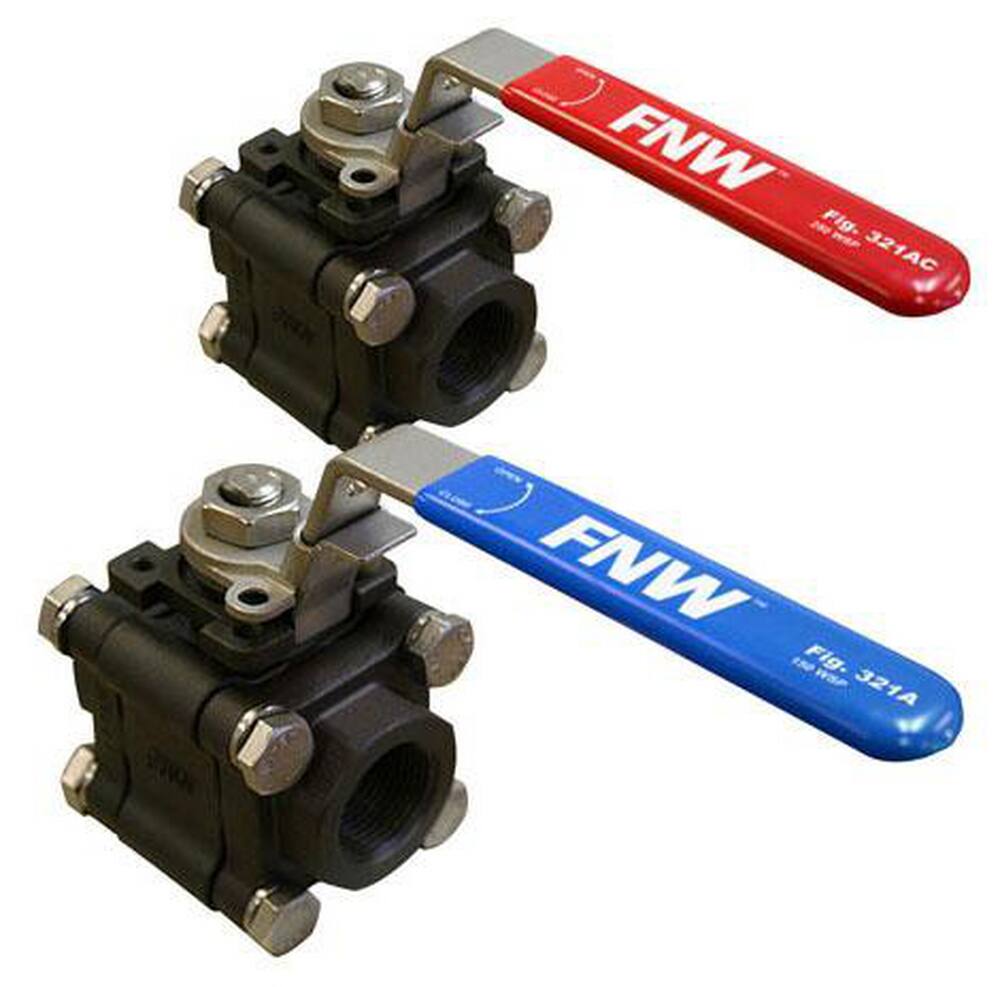

Figure 321AC
3/4 in. Carbon Steel Full Port Socket Weld Ball Valve

Part #FNW321ACSWF | Item #4106231
  • 3/4 CS Stainless Steel 2000# 250 # Steam Socket Weld 3 Piece
  • 3/4 in. carbon steel ball valve
  • End Connections: Socket Weld
  • Valve Length: 3.15 in.
  • Valve Pressure Class: 2000#
  • Recommended Application: Steam, water
  • Stainless steel vented ball
  • Saturated steam 250 psi
  • Blow-out proof stem
  • Live loaded packing
  • Investment cast body

All Sizes

1/4 in
Part #FNW321ACSWB | Item #4106226
3/8 in
Part #FNW321ACSWC | Item #4106227
1/2 in
Part #FNW321ACSWD | Item #4106228
3/4 in
Part #FNW321ACSWF | Item #4106231
1 in
Part #FNW321ACSWG | Item #4106233
1-1/4 in
Part #FNW321ACSWH | Item #4106234
1-1/2 in
Part #FNW321ACSWJ | Item #4106237
2 in
Part #FNW321ACSWK | Item #4106239
