6500 Series

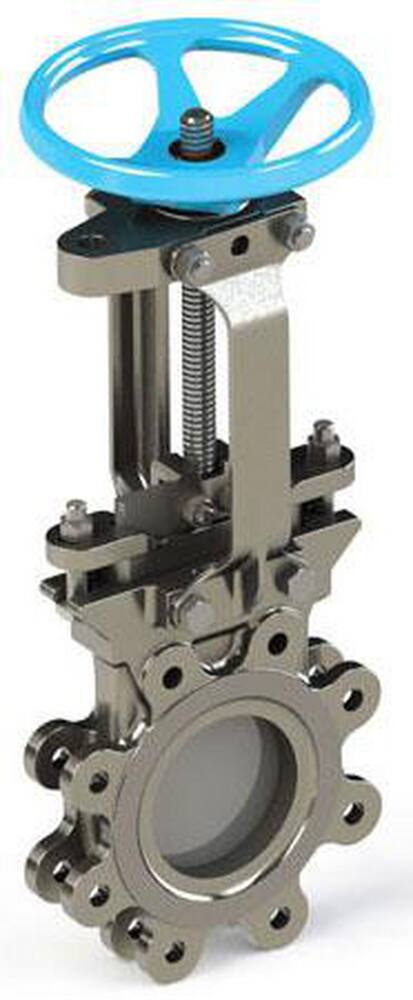

20 in. 316L Stainless Steel Flanged Knife Gate Valve

Part #FNW6500S20 | Item #4605040

• 20 Stainless Steel 316 X 316 UD MS Lug Knife Gate Valve
• Unidirectional shutoff
• Hand wheel is heavy cast iron, with a rounded grip and epoxy coated hand wheel
• Double set screws prevent threaded-on hand wheel from backing off
• Cast stainless steel yoke arms provide optimum flexural rigidity
• Stainless steel hardware
• Radius gate edge improves packing seal and life, along with the rounded packing chamber, the system reduces the amount of force needed to arrest packing leaks
• Elastomer Quad Seal is Standard in Packing Arrangement
• Reinforced anti-extrusion ring enhances packing functionality, reduces friction, acts as a gate wiper, and supports the gate in horizontally mounted valves
• Machined gland pocket area
• Bonnetless, outside screw and yoke
